Fonts¶

Pixlet offers a couple of different fonts for rendering text. Which one to use depends on the information being presented and the amount of space available when rendering. Pixlet's Text Widget attempts to draw the font on the baseline, i.e. offset upwards by the font's descent. And if that sentence made no sense to you, read then next section. =)

Typography and Unicode refresher¶

Our most important Unicode block is Basic Latin (a.k.a. ASCII). We also need at least the Latin-1 Supplement block (a.k.a. ISO 8859, "Latin-1") to be able to render symbols like N, A and O. These matter a lot when displaying names of people, locations, etc.

The definitions in this graphic are helpful:

In addition to these, a glyph's advance is the distance between its "origin point", i.e. the leftmost point of the baseline, and the following glyph.

A cap height of 6 and a descent of 1 is sufficient to fit both upper and lower case A-Z, as well as the most common special characters. From fiddling with fonts a bit, this seems to be the minimum.

To cover Latin-1 Supplement, we need more space. At least one additional pixel in the ascent for characters with diacritics to be legible.

Unicode Emoji Support¶

The Pixlet Text widget automatically detects and renders Unicode emojis alongside regular text. You can include emojis directly in your text strings with any font:

# Single emoji
render.Text("😀", font="6x10")

# Multiple emojis
render.Text("😀😂😍😉😎", font="5x8")

# Mixed text and emojis
render.Text("Hello 😀 World!", font="tb-8")

# Flag emojis
render.Text("🇺🇸🇬🇧🇫🇷", font="6x10")

How Emoji Rendering Works¶

• Automatic Detection: The Text widget automatically detects Unicode emoji sequences
• Built-in Support: Uses Pixlet's built-in emoji sprite sheet with 1753+ emojis
• Seamless Integration: Emojis render alongside text using any font
• Standard Size: All emojis render at 10x10 pixels regardless of text font

Scalable Emojis¶

For large emojis or standalone emoji graphics, use the dedicated render.Emoji widget:

# Create emojis at any size
render.Emoji(emoji="🚀", height=32)   # 32px tall rocket
render.Emoji(emoji="⚡", height=64)   # 64px tall lightning

The Emoji widget provides: - Custom sizing: Any height from 1 to hundreds of pixels - High quality scaling: Smooth interpolation for large sizes - Performance: Optimized rendering at any scale

For a complete list of supported emojis and detailed usage, see Emoji Support.

The fonts¶

Note that all of these are free or public domain fonts created by others. Attribution is given for each below.

tb-8¶

A modified version of 5x8. This font has variable advance (i.e. it's not mono-spaced) and slightly tweaked glyphs for improved legibility. All digits are monospace with advance 5.

Like 5x8, this covers Basic Latin and Latin-1 Supplement, plus some other latin glyphs.

All digits in tb-8 are monospaced 5x6, so rendering them with a baseline offset of -1 and a height of 6 is perfectly fine and renders the full glyphs without cropping.

Common numerical symbols ('+', '-', '/', '*', '=', '%', '.') also fit in height 6 with offset -1. These are however all variable-width. Note that ',' has descent 1 and won't fit in this case.

Currency symbols require full height in the general case, but euro sign and dollar sign '$' have no descent and fit in 7 pixels.

• Advance: 2-6
• Height: 8
• Cap height: 6
• Ascent: 7
• Descent: 1

Dina_r400-6¶

By Jorgen Ibsen

Covers Basic Latin and Latin-1 Supplement, but nothing beyond that. 256 code points.

• Advance: 6
• Height: 10
• Cap height: 6
• Ascent: 8
• Descent: 2

5x8¶

By Markus Kuhn.

Covers Basic Latin, Latin-1 Supplement, a ton of other Latin code blocks. 1426 code points in total.

• Advance: 5
• Height: 8
• Cap height: 6
• Ascent: 7
• Descent: 1

6x13¶

By Markus Kuhn.

Covers Basic Latin, Latin1- Supplement, and a bazillion other glyphs, including the runic code block. 4121 code points in total.

• Advance: 6
• Height: 13
• Cap height: 9
• Ascent: 11
• Descent: 2

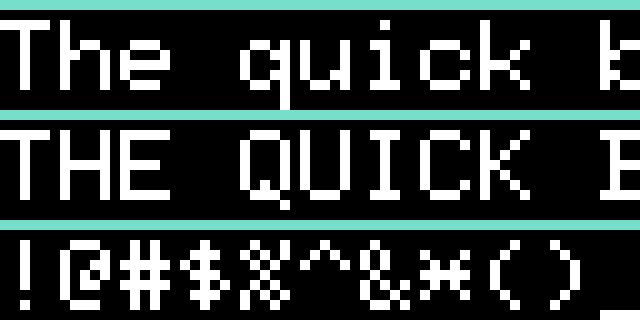

6x10¶

By olikraus.

A medium, monospace, bitmap font with a size of 6x10 pixels. Ideal for fixed-width applications.

• Advance: 6
• Height: 10
• Cap height: 7
• Ascent: 8
• Descent: 2

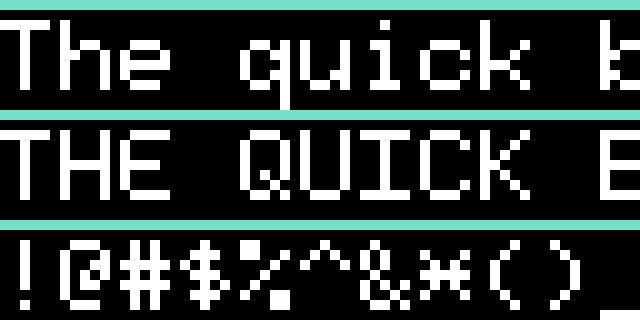

6x10-rounded¶

Original font By olikraus & modified by SynthSolar.

A medium, monospace, rounded, bitmap font with a size of 6x10 pixels. Ideal for fixed-width applications.

• Advance: 6
• Height: 10
• Cap height: 7
• Ascent: 8
• Descent: 2

10x20¶

By Markus Kuhn.

Covers Basic Latin, Latin1- Supplement, and a bazillion other glyphs, including the runic code block. 4121 code points in total.

• Advance: 10
• Height: 20
• Cap height: 13
• Ascent: 16
• Descent: 4

tom-thumb¶

By Robey Pointer

A very tiny, monospace, bitmap font. It's a 4x6 font with 3x5 usable pixels. This font is great for a really tiny font that also supports upper and lower cased characters.

• Advance: 4
• Height: 6
• Cap height: 4
• Ascent: 5
• Descent: 1

CG-pixel-3x5-mono¶

By Ilmari Karonen

This font is a true 3x5 font which only occupies 5 pixels on a display. Check out the 4x5 version if you have the width to spare.

• Advance: 4
• Height: 5
• Cap height: 4
• Ascent: 5
• Descent: 0

CG-pixel-4x5-mono¶

By Ilmari Karonen

This font is a true 4x5 font which only occupies 5 pixels on a display. Check out the 3x5 version if you are also constrained on width.

• Advance: 5
• Height: 5
• Cap height: 4
• Ascent: 5
• Descent: 0

Terminus Variable¶

By Dimitar Toshkov Zhekov

Terminus Variable is a family of bitmap fonts that supports multiple pixel sizes. Each size ships in a normal weight, with matching light weight variants at 14px and larger. All styles include 1356 glyphs (ISO10646-1 coverage). Numeric glyphs, the colon, and the space character share the same width, so clock layouts and other tabular number displays stay aligned.

terminus-12¶

• Advance: 2-7
• Height: 12
• Cap height: 8
• Ascent: 10
• Descent: 2

terminus-14 / terminus-14-light¶

• Advance: 3-10
• Height: 14
• Cap height: 10
• Ascent: 12
• Descent: 2

terminus-16 / terminus-16-light¶

• Advance: 3-10
• Height: 16
• Cap height: 10
• Ascent: 12
• Descent: 4

terminus-18 / terminus-18-light¶

• Advance: 3-12
• Height: 18
• Cap height: 12
• Ascent: 15
• Descent: 3

terminus-20 / terminus-20-light¶

• Advance: 3-12
• Height: 20
• Cap height: 13
• Ascent: 16
• Descent: 4

terminus-22 / terminus-22-light¶

• Advance: 3-13
• Height: 22
• Cap height: 14
• Ascent: 17
• Descent: 5

terminus-24 / terminus-24-light¶

• Advance: 3-14
• Height: 24
• Cap height: 15
• Ascent: 19
• Descent: 5

terminus-28 / terminus-28-light¶

• Advance: 4-16
• Height: 28
• Cap height: 18
• Ascent: 22
• Descent: 6

terminus-32 / terminus-32-light¶

• Advance: 4-18
• Height: 32
• Cap height: 20
• Ascent: 26
• Descent: 6
